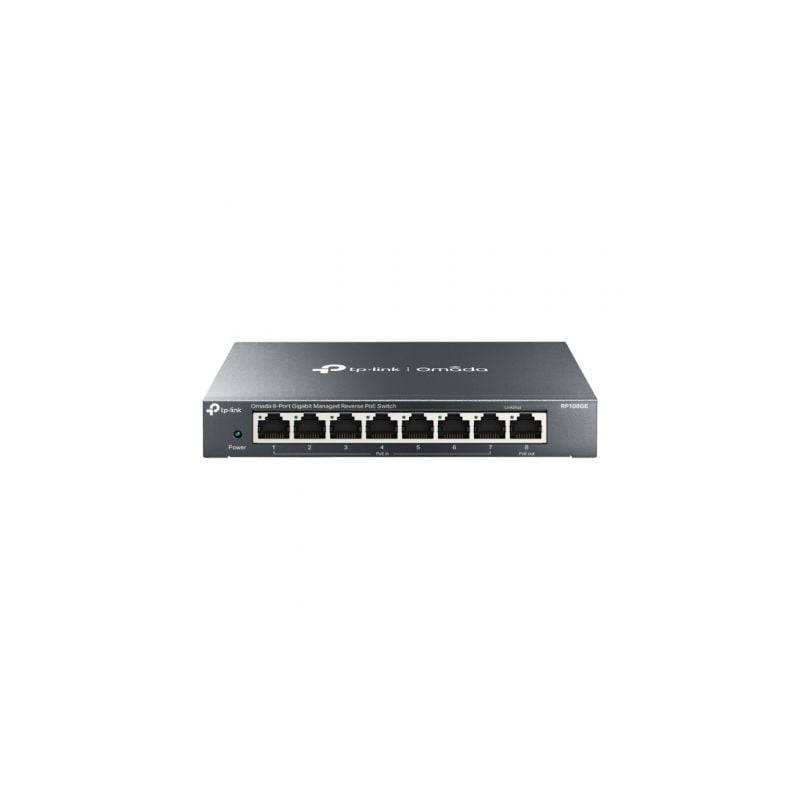

Switch TP-Link TL-RP108GE 8 Puertos/ RJ-45 10/100/1000 PoE

TL-RP108GE

8-Port Gigabit Managed Reverse PoE Switch

7 entradas PoE y 1 salida PoE Puertos RJ45 de 10/100/1000 Mbps
1 puerto de salida de CC que admite conmutación de voltaje de 5 V y 12 V
Carcasa de metal duradero de calidad superior y apariencia profesional
Gestión inteligente a través de una interfaz de usuario web y una utilidad descargable
La tecnología verde reduce el consumo de energía

Qué hace este producto

CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolosnbsp; CSMA/CD
Interfacenbsp; 7 Passive PoE-in RJ45 Ports:
10/100/1000Mbps Auto-Negotiation
Voltage: 24/48 V (mixture is not supported)
Power pin of Ethernet cable: 4/5+ 7/8-
1 Passive PoE-out RJ45 Port:
10/100/1000Mbps Auto-Negotiation
Voltage: depending on the input voltage of PoE-in ports
Power pin of Ethernet cable: 4/5+ 7/8-
1 DC Output Port:
Voltage: 5/12 V
Medios de Rednbsp; 10Base-T:
UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 937; STP (maximum 100 m)
100Base-TX:
UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 937; STP (maximum 100 m)
1000Base-T:
UTP category 5e cable (maximum 100 m)
EIA/TIA-568 100 937; STP (maximum 100 m)
Tasa de Reenvío de Paquetenbsp; 11.9 Mbps
Tabla de Dirección Macnbsp; 4 K
Jumbo Framenbsp; 16 KB
Capacidad de Switcheonbsp; 16 Gbps
Estándares IEEEnbsp; IEEE802.3ab, IEEE802.3i, IEEE802.3p
IEEE802.3q, IEEE802.3x, IEEE802.3u
Velocidad de Datosnbsp; Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
Gigabit Ethernet: 2000 Mbps (Full Duplex)
Indicador LEDnbsp; Power, Link/Act LED
Dimensiones (W X D X H)nbsp; 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)
Consumo Máximo de energíanbsp; 3.98 W (with no PD connected)
18.01 W (24 V with PD connected)
32.74 W (48 V with PD connected)
Disipación Máxima de Calornbsp; 13.57 BTU/h (with no PD connected)
61.41 BTU/h (24 V with PD connected)
111.64 BTU/h (48 V with PD connected)
CARACTERÍSTICAS DE SOFTWARE
Calidad de servicionbsp; Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Featuresnbsp; IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLANnbsp; Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Método de Transmisiónnbsp; Store-And-Forward
OTROS
Certificacionnbsp; FCC, CE, RoHS
Contenido del paquetenbsp; TL-RP108GE
Power Cord
Installation Guide
Rubber Feet
Requisitos del Sistemanbsp; Microsoft® Windows® 98SE, NT, 2000, XP, Vista8482; or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Ambientenbsp; Operating Temperature: 08451;~408451; (328457;~1048457;)
Storage Temperature: -408451;~708451; (-408457;~1588457;)
Operating Humidity: 10~90 non-condensing
Storage Humidity: 5~90 non-condensing
